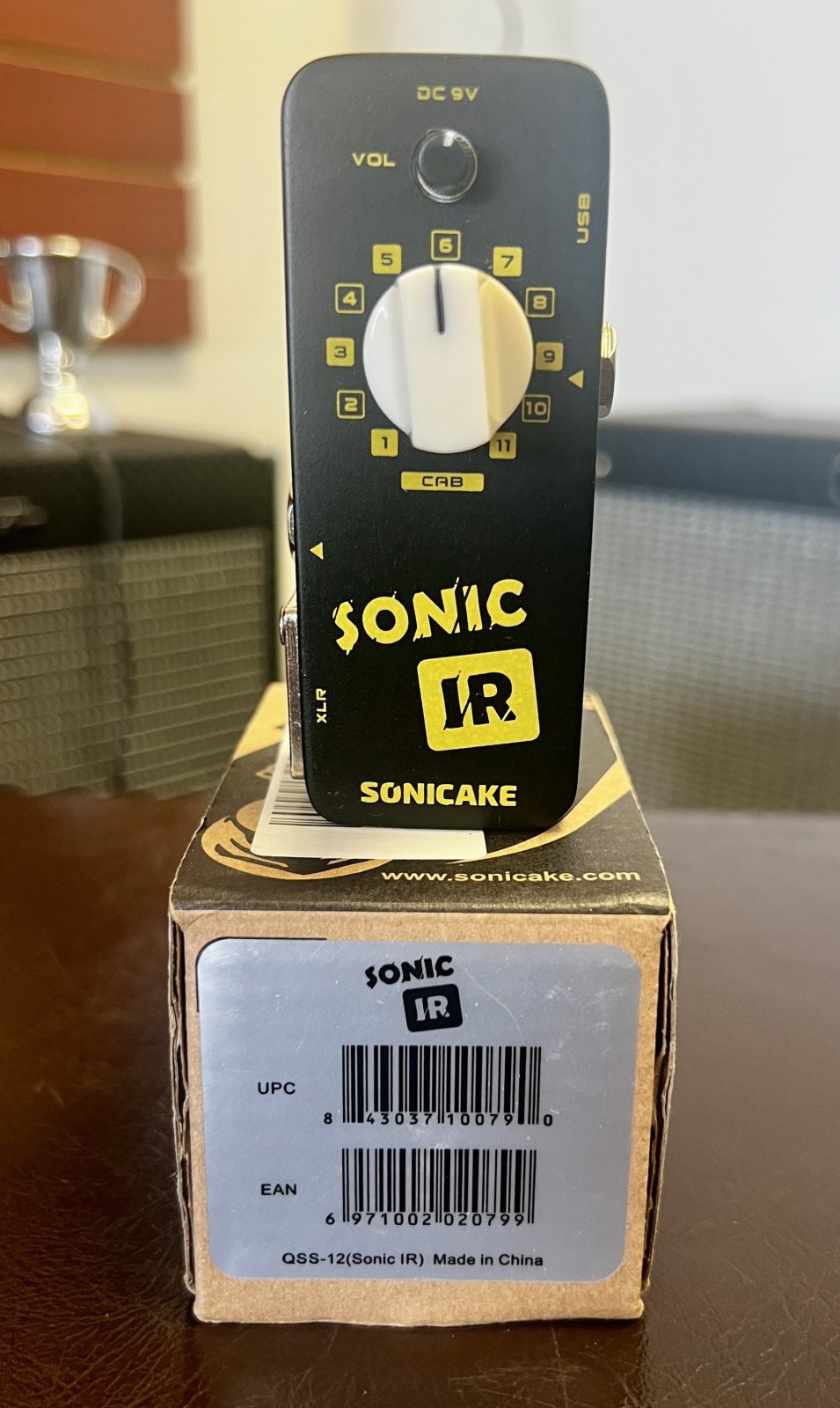

-USED- Sonicake IR Speaker/Cabinet Emulator and Impulse Response Loader
|
|
|
|
Connect to computer to import your IR files. The Sonic IR will be recognized as a USB disk when connected.
To import an IR file:
1. Drag and drop an IR file into the USB disk. The IR file should be a 24-bit, 44.1kHz mono wav file ONLY. The file name should start with a location number ranging from 01-11 (e.g. “06 My IR 4x12” is a correct name; the “06” indicates the location the file will be saved).
2. Delete the original file with the same location number.
3. Delete the “FILELIST” file in the USB disk.
4. Eject and restart the unit.
CAB Models
|
No. |
Name |
Based On |
|
01 |
Champion 1x8 |
Fender® Champ* 1x8" cabinet |
|
02 |
Voks 2x12 |
VOX® AC30* 2x12" cabinet |
|
03 |
TR65 2X12 |
Fender® ‘65 Twin Reverb* 2x12" cabinet |
|
04 |
UK 2550 2x12 |
Marshall® 2550* 2x12" cabinet |
|
05 |
BM59 4X10 |
Fender® ‘59 Bassman* 4x10" cabinet |
|
06 |
Tanger 4x12 |
Orange® PPC412* 4x12" cabinet |
|
07 |
UK 1960 4x12 |
Marshall® 1960AV* 4x12" cabinet |
|
08 |
6505 4x12 |
Peavey® 6505* 4x12" cabinet |
|
09 |
Mebo 4x12 |
Mesa/Boogie® Rectifier* 4x12" cabinet |
|
10 |
M Bass 2x10 |
Mark Bass®* 2x10" bass cabinet |
|
11 |
A Bass 8x10 |
Ampeg® SVT-810F* 8x10" bass cabinet |
? Simple & Efficient Impulse Response Loading tool for simulating all kinds of Speaker Cabinets.
?11 on-board Classic Guitar/Bass Cabinet Simulations with Volume Control.
? Super easy way (Drag and Drop operation) for Managing IR Files (recognized as a USB Disk).
? XLR Balanced Output for plugging into Mixer or Audio Interface or PA System.
SOLD AS-IS IN EXCELLENT CONDITION - INCLUDES BOX & MANUAL
